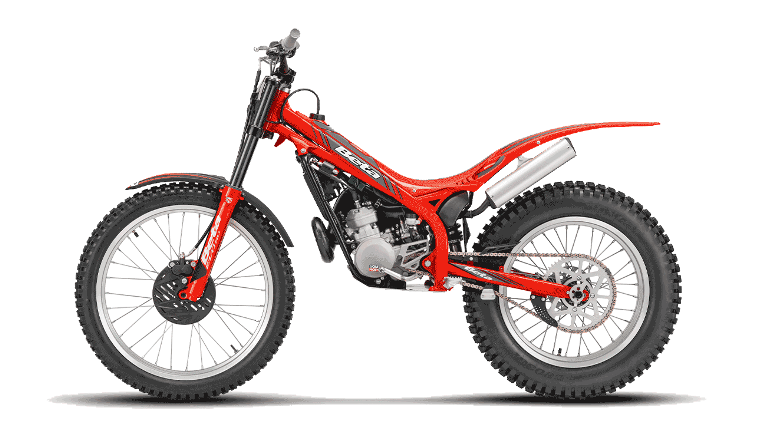

The EVO 80 Senior is the perfect link between the Junior version and its big sister, the 125. Designed for young riders ready to make the leap, this bike combines the intuitiveness and lightness of the 80cc engine with the dimensions of a larger bike. It is the ideal tool for refining technique and starting to compete at a high level.
Taller, more stable and more powerful. The EVO 80 Senior is the natural choice for young riders who have moved beyond the learning stage and are looking for a bike that can support their competitive growth. The 21‘ and 18’ wheels and the frame derived from larger displacement models allow them to set their trajectories and overcome obstacles with the precision of a true professional.
chassis
Frame
Steel
Wheelbase
1230 mm
Max length
1925 mm
Max width
815 mm
Max height
1127 mm
Seat height
678 mm
Ground clearance
325 mm
Footrest height
375 mm
Fuel tank capacity
2,5 l
Reserve
0,5 l
Cooling circuit capacity
600 cc
Front suspension
Hydraulic fork with ø38 mm shaft
Rear suspension
Monoshock with adjustable spring preload and
adjustable hydraulic brake in extension
Shock stroke
41 mm
Front wheel travel
165 mm
Rear wheel travel
150 mm
Front brake
disc ø185 mm with 2 opposed pistons
Rear brake
disc ø150 mm with 2 opposed pistons
Front rim
21 x 1,6 – 36 holes
Rear rim
18 x 1,85 – 36 holes
Front tire
2,75 – 21
Rear tire
4,00 – 18
engine
Type
Single cylinder, 2-stroke, liquid-cooled, reed induction
into the crankcase
Bore
48 mm
Stroke
44 mm
Total displacement
79,6 cc
Compression ratio
14,7:1
Ignition
Hidria
Lubrication
mix with fuel 1,5 % (synthetic oil)
Spark plug
Champion RN3C
Fuel system
Carburetor
Carburetor
Dell’Orto PHBG 21
Clutch
Wet multi-disc clutch
Primary drive
Z. 20/77
Gearbox
6-speed
Final drive
Z. 11/60
Engine oil
SAE 20W/30 (300cc)
