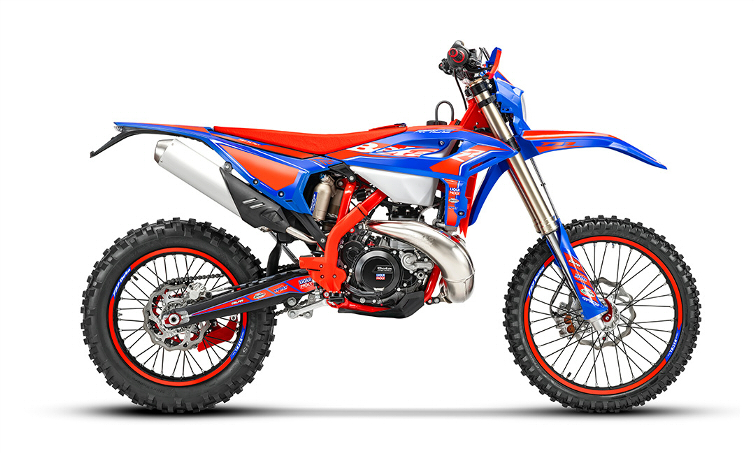

The RR Race 300 is the top of the 2T range: power, torque and smoothness combined in a bike capable of tackling any obstacle. A model designed for the most experienced riders who are looking for absolute performance without sacrificing control.
The RR RACE 300 is the ideal bike for those looking for a 2-stroke with benchmark performance, delivered in the simplest and most intuitive way possible, allowing every rider to get the most out of every cc of the engine. The engine’s usability will allow anyone to always get the best out of themselves.
CHASSIS
FRAME
Molybdenum steel with double cradle split above
the exhaust port
WHEELBASE
1482 mm
MAX LENGTH
2175 mm
MAX WIDTh
830 mm
MAX HEIGHT
1275 mm
SEAT HEIGHT
950 mm
GROUND CLEARANCE
340 mm
FOOTREST HEIGHT
427 mm
DRY WEIGHT
103,5 kg (front 50,8 kg; rear 52,7 kg)
FUEL TANK CAPACITY
9,5 l
RESERVE
2,3 l
COOLING SYSTEM CAPACITY
1,3 l
FRONT SUSPENSION

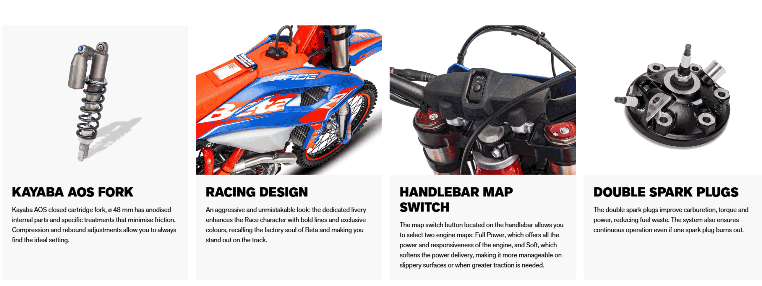

Hydraulic usd fork with Ø 48 mm shaft
rear SUSPENSION
Monoshock with progressive compound lever
SHOCK ABSORBER STROKE
130 mm
FRONT WHEEL TRAVEL
300 mm
rear WHEEL TRAVEL
287 mm
FRONT BRAKE
Wave disc Ø260 mm and double-piston floating caliper
rear BRAKE
Wave disc Ø240 mm and single-piston floating caliper
FRONT RIM
21 x 1,6 – 36 holes
REAR RIM
18 x 1,85 – 36 holes
FRONT TYRE
90/90 – 21
REAR TYRE
140/80 -18
ENGINE
TYPE
Single cylinder, 2-stroke, liquid-cooled
BORE
73 mm
STROKE
69,9 mm
DISPLACEMENT
292,6 cc
COMPRESSION RATIO
14,4:1
EXHAUST VALVE
BPV system
starter
Electric
IGNITION
AC kokusan – digital CDI
SPARK PLUG
NGK MR7BI8 (x2)
INDUCTION SYSTEM
Induction reed
LUBRICATION
Mixing
CARBURETTOR
Keihin PWK 36
CLUTCH
Wet multi-disc clutch
PRIMARY DRIVE
Z.27/72
TRANSMISSION
6 gears
FINAL TRANSMISSION
Chain
ENGINE OIL
SAE 10W/40
CONSUMPTION l/100km
2,6
POLLUTION Co2 [g/km]
61
