The RR Race 480 4T is pure power and uncompromising torque, enclosed in a racing vehicle that always maintains stability and precision. A bike designed for experienced riders who want maximum performance.
With its unrivalled power, the 480 Race requires technique and determination. But the balanced structure, Kayaba suspension and electronic control systems such as dual mapping and TC allow you to tame it naturally and transform the power of the engine into stability, safety and speed that sets the benchmark.
CHASSIS
FRAME
Molybdenum steel with double cradle split above
the exhaust port
WHEELBASE
1480 mm
MAX LENGHT
2180 mm
MAX WIDTH
830 mm
MAX HEIGHT
1275 mm
SEAT HEIGHT
950 mm
GROUND CLEARANCE
335 mm
FOOTREST HEIGHT
427 mm
DRY WEIGHT
107,5 kg (front 52,7 kg; rear 54,8 kg)
FUEL TANK CAPACITY
9,0 l
RESERVE
2,3 l
COOLING SYSTEM CAPACITY
1,4 l
FRONT SUSPENSION
Hydraulic usd closecartridge fork with Ø 48 mm shaft
REAR SUSPENSION
Monoshock with progressive compound lever
SHOCK ABSORBER STROKE
130 mm
FRONT WHEEL TRAVEL
300 mm
REAR WHEEL TRAVEL
287 mm
FRONT BRAKE
Wave disc Ø260 mm and double-piston floating caliper
REAR BRAKE
Wave disc Ø240 mm and single-piston floating caliper
FRONT RIM
21 x 1,6 – 36 holes
REAR RIM
18 x 2,15 – 36 holes
FRONT TYRE
90/90 – 21
REAT TYRE
140/80 -18
ENGINE
TYPE
Single cylinder, 4-stroke, liquid-cooled
BORE
100 mm
STROKE
60,8 mm
DISPLACEMENT
477,5 cc
COMPRESSION RATIO
12,48:1
VALVE TRAIN
Dohc finger follower / 4 valve, intake titanium,
exhaust steel
STARTER
Electric starter
ACG
Kokusan
SPARK PLUG
NGK LKAR 8A-9
LUBRICATION
2 oil pumps
FUEL SYSTEM
Elldor dual electronic injection
THROTTLE BODY
Ø 42 mm – Synerject
CLUTCH
Wet multi-disc clutch
PRIMARY DRIVE
Z.23/76
TRANSMISSION
6 gears
FINAL TRANSMISSION
Chain
ENGINE OIL
SAE 10W/50 0,8 l. + SAE 10W/40 0,8 l.
CONSUMPTION l/100km
3,3
POLLUTION Co2 [g/km]
79

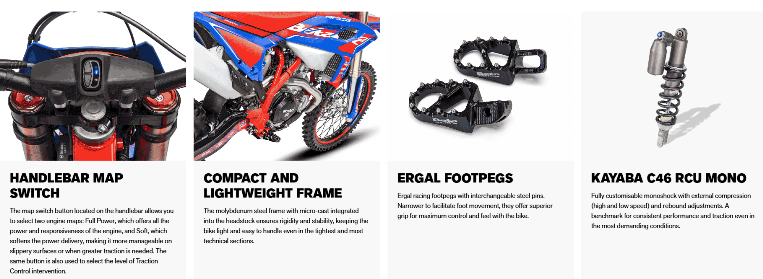

Click image to enlarge
