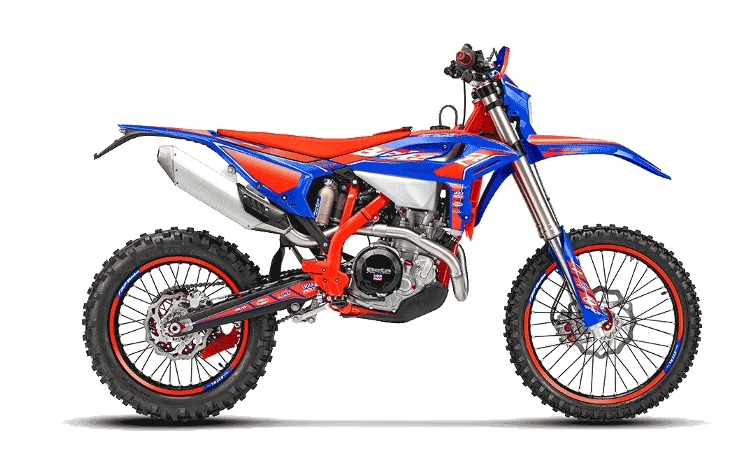

The RR Race 350 4T is the perfect choice for those looking for a race-ready four-stroke with a sharp handling and manageable power delivery. It is the most manoeuvrable of the 4T family, capable of putting everyone at ease, from amateur to expert riders.
The RR Race 350 4T stands out for its responsiveness, lightness and brilliant engine. The new MY26 mappings make power delivery even more linear and usable, allowing you to find your rhythm and confidence immediately. KYB racing suspension, a smooth clutch and racing set-up complete a package designed for competitive enduro.
CHASSIS
FRAME
Molybdenum steel with double cradle split above
the exhaust port
WHEELBASE
1476 mm
MAX LENGTH
2180 mm
MAX WIDTH
830 mm
MAX HEIGHT
1275 mm
SEAT HEIGHT
950 mm
GROUND CLEARANCE
355 mm
FOOTREST HEIGHT
427 mm
DRY WEIGHT
107,5 kg (front 52,7 kg; rear 54,8 kg)
FUEL TANK CAPACITY
9,0 l
reserve
2,3 l
COOLING SYSTEM CAPACITY
1,4 l
FRONT SUSPENSION
Hydraulic usd fork with Ø 48 mm shaft
REAR SUSPENSION
Monoshock with progressive compound lever
SHOCK ABSORBER STROKE
130 mm
FRONT WHEEL TRAVEL
300 mm
rear WHEEL TRAVEL
287 mm
FRONT BRAKE
Wave disc Ø260 mm and double-piston floating caliper
rear BRAKE
Wave disc Ø240 mm and single-piston floating caliper
FRONT RIM
21 x 1,6 – 36 holes
rear RIM
18 x 1,85 – 36 holes
FRONT TYRE
90/90 – 21
REAR TYRE
140/80 -18
ENGINE
TYPE
Single cylinder, 4-stroke, liquid-cooled
BORE
88 mm
STROKE
57,4 mm
DISPLACEMENT
349,1 cc
COMPRESSION RATIO
13,19:1
VALVE TRAIN
Dohc finger follower / 4 titanium valve
STARTER
Electric starter
acg
Kokusan
spark plug
NGK LKAR 8A-9
lubrication
2 oil pumps
fuel system
Elldor dual electronic injection
throttle body
Ø 42 mm – Synerject
clutch
Wet multi-disc clutch
PRIMARY DRIVE
Z.23/76
TRANSMISSION
6 gears
final transmission
Chain
ENGINE OIL
SAE 10W/50 0,8 l. + SAE 10W/40 0,8 l.
CONSUMPTION l/100km
3,4
POLLUTION Co2 [g/km]
80
