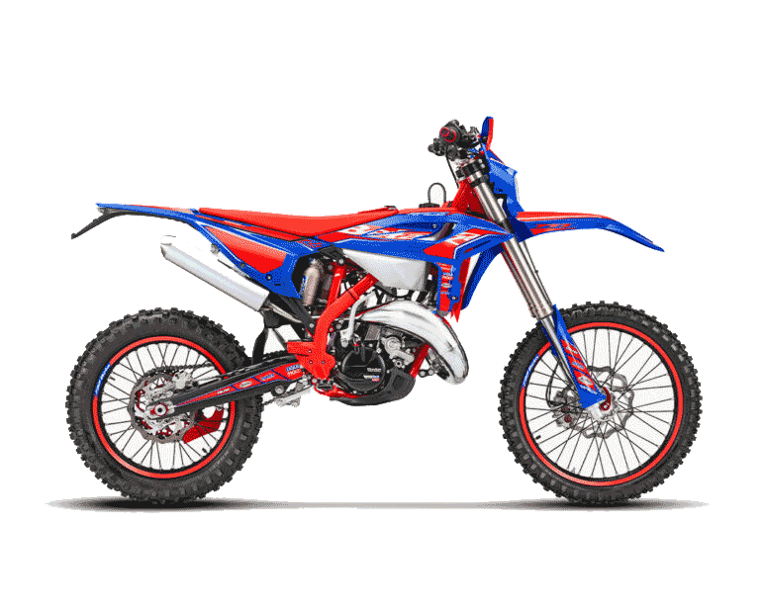

The RR Race 125 2T is the smallest in the Race range. Lightweight, agile and responsive, it is a concentration of technology and performance designed for young riders who want to start with a real racing bike.
The RR Race 125 2T is designed to enhance the skills of young riders on the race track. The non-slip racing seat with document pocket, reinforced hand guards and racing components ensure stability, protection and maximum control. Even in the longest trials, comfort and safety remain at the forefront, allowing you to stay focused on performance at all times.
CHASSIS
FRAME
Molybdenum steel with double cradle split above
the exhaust port
WHEELBASE
1477 mm
MAX LENGTH
2167 mm
Max width
830 mm
Max height
1275 mm
Seat height
950 mm
Ground clearance
345 mm
Footrest height
430 mm
Dry weight
94 kg (front 45 kg; rear 49 kg)
Fuel tank capacity
9,5 l
Reserve
2,3 l
Cooling system capacity
2,3 l
Front suspension
Hydraulic usd fork with Ø 48 mm shaft
Rear suspension
Monoshock with progressive compound lever
Shock absorber stroke
130 mm
Front wheel travel
300 mm
Rear wheel travel
287 mm
Front brake
Wave disc Ø260 mm and double-piston floating caliper
Rear brake
Wave disc Ø240 mm and single-piston floating caliper
Front rim
21 x 1,6 – 36 holes
Rear rim
18 x 1,85 – 36 holes
Front tyre
90/90 – 21
Rear tyre
120/80 -18
ENGINE
Type
Single cylinder, 2-stroke, liquid-cooled
Bore
54 mm
Stroke
54,5 mm
Displacement
124,8 cc
Compression ratio
15,2:1
Exhaust Valve
BPV system
Starter
Kick starter
Ignition
AC Kokusan – digital CDI
Spark plug
NGK BR9ECMVX
Induction system
Induction reed
Lubrication
Mixing
Carburettor
Keihin PWK 36
Clutch
Wet multi-disc with reverse opening
Primary drive
Z.23/73
Transmission
6 gears
Final transmission
Chain
Engine oil
SAE 10W/40
Consumption l/100km
2,5
Pollution Co2 [g/km]
58
