Born to race

Developed through racing, the MX250 combines performance, low weight and is eager to stand out on the dirt MX tracks of power and 40 N·m of torque with low fuel consumption.The redesigned transmission system operates
more quietly, provides quicker acceleration from a standstill, and engages more smoothly.
he lubrication system is enhanced with an oil cooler to effectively reduce oil temperature
during high-speed operation, shorten engine warm-up time, and improve overall engine
conditions,extending the maintenance interval from 4,000 km to 6,000 km.


Price...

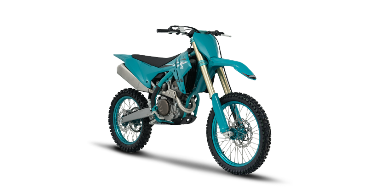

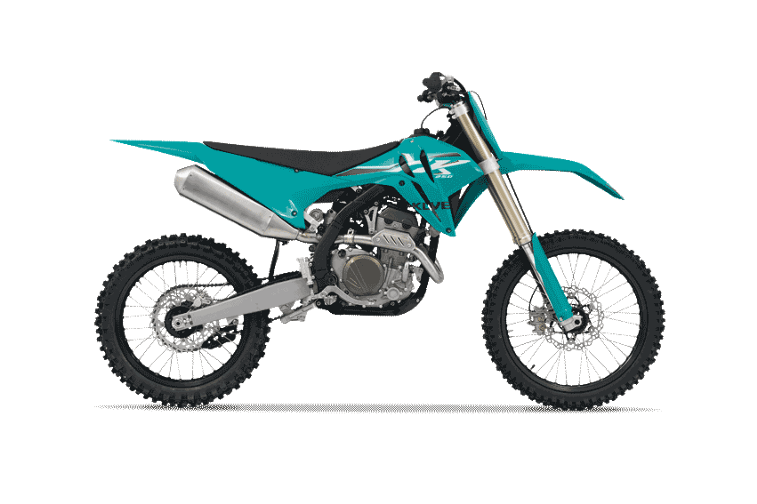

Take a closer look at this  MX250 249,9cc engine motorcycle.

Technical Data


Dimension

Length X Width X Height   2168×805×1265mm

Wheelbase    1490mm

Seat height   960mm

Tank capacity   7L

Curb weight    97kg

Ground clearance    310mm

Engine

Engine type   Single cylinder/DOHC /4-valve/4-stroke/ water-cooled

Displacement    249.9cc

Bore x stroke   79×51mm

Compression ratio   13.9:1

Max. power    30kW/12000rpm

Max. torque    27N.m/7000rpm

Fuel supply    EFI

Max. speed    129km/h

Chassis

Front suspension   Upside down damping, fully adjustable, KYB

Rear suspension    Fully adjustable damping, external airbag, Yu An

Suspension travel   Front: 310mm/Rear: 280mm

Front brake    Single floating disc, 2-piston floating caliper

Rear brake     1-disc, 1-piston floating caliper

Front tire       80/100-21

Rear tire       100/90-19

Steering angle   38.5°

Rake angle        28°




Photo Gallery

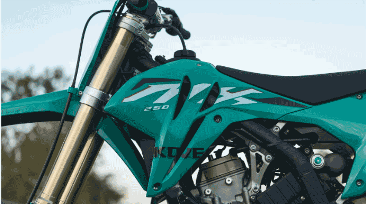

A True contender in the off-road category, the MX250 GEN2 carries only a 6L fuel tank. Enough for intense trail sessions without excess bulk.

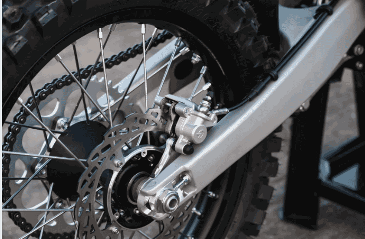

Braking performance is handled by a Dual-piston hydraulic caliper at the front and a single-piston unit at the rear, both supplied by Taisko.

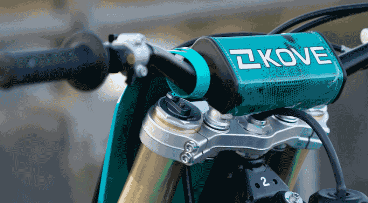

The MX250 is equipped with Yu-An suspension components. Although Yu-An remains a relatively lesser-known name in the market, it operates under the same manufacturing umbrella as Showa. The two brands share common service components, internal valving hardware, and spring specifications.


The MX250 GEN2 strikes an optimal balance between chassis stability and precise manoeuvrability.
