MORE THAN ADVENTURE

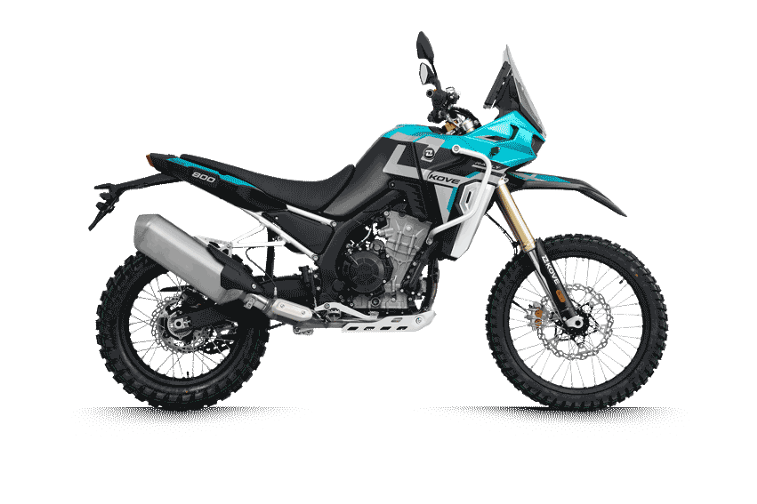

Embarking on a treacherous journey, Igniting the desire to push the limits.Inspired by the Dakar Rally, the ultimate off-road weapon, 800X RALLY, MORE THAN ADVENTURE



Dimension

Length X Width X Height   2267×810×1435mm

Wheelbase    1545mm

Seat height   890mm

Tank capacity   20L

Curb weight   176KG

Ground clearance   293mm

Engine

Engine type  Twin-cylinder/vertical/DOHC/water-cooled

Displacement  799cc

Bore x stroke  88×65.7mm

Compression ratio   13:1

Max. power    71kW/9000rpm

Max. torque   80N·m/7500rpm

Fuel supply    EFI

Max. speed   180km/h

Fuel consumption    4.7L/100km

Chassis

Frame type    Split aluminum alloy subframe

Front suspension   φ49mm, dual cavity damping, full- adjustable, YUAN

Rear suspension    Adjustable preload/damping, external airbag, Yu An

Suspension travel     Front: 270mm/Rear: 240mm

Front brake     Singe floating disc, single-direction 2-piston floating calliper

Rear brake      Single disc, 1-piston floating calliper

Front tire      90/90-21

Rear tire      140/80-18

Steering angle   32°

Rake angle    26.15°

Instrumentation    TFT

"PRO" Grade
Professional rally wheel setup
CST AMBRO A3 off-road tires (with inner tube) Front: 90/90-21 Rear: 140/80-18

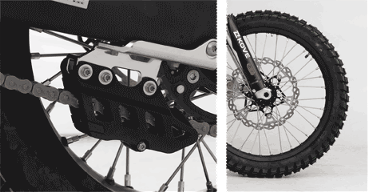

Professional rally chain guide

Confident Engineering

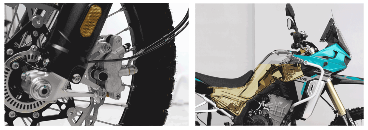

The self-developed TAISKO braking system was tested under high-intensity Dakar conditions for braking feel, distance and sensitivity.
Original 20L center-mounted fuel tank, which does not affect handling when filled.
Front-mounted air intake ensures smooth airflow at all times.

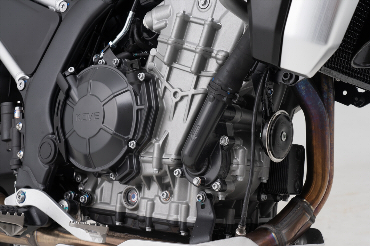

Powerful Performance
Maximum power: 71KW/9000rpm
Maximum torque: 80N.m/7500rpm
Compression ratio: 13:1
Bore × Stroke: 88mm × 65.7mm

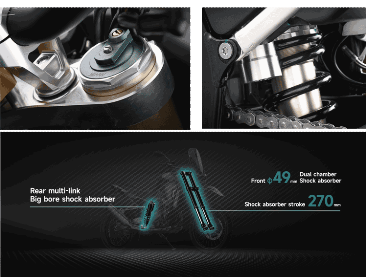

Ultra-Rugged
Dual-chamber front suspension (adjustable compression and rebound)
Stroke: 270mm
External airbag rear suspension (adjustable preload, compression, and rebound).
Stroke: 240mm
Tuned by KOVE RALLY TEAM.
